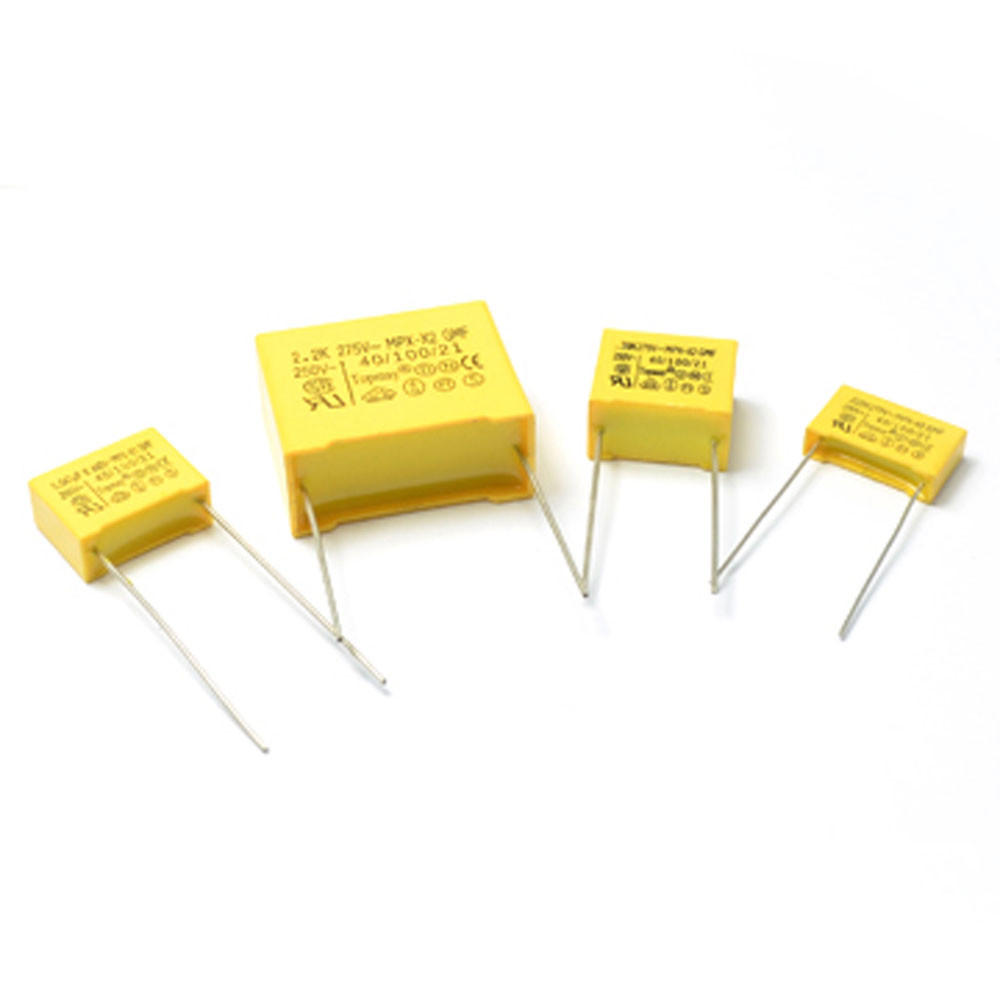

Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC

Shenzhen Topmay Electronic Co., Ltd.
Contact Now

Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC

Brand Name : ETOPMAY

Model Number : TMCF18

Certification : SGS( RoHS), UL

Place of Origin : China

MOQ : 5000pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000000pcs per month

Delivery Time : 12~15 working days

Packaging Details : Bulk, Tape

Capacitance : 1uF( 105)

Rated Voltage : 275VAC 305VAC 310VAC

Tolerance : ±10%

Lead Space : 22.5mm

Operating Temperature : -40°C - +110°C

Application : Interference Suppression X2 Capacitor

Contact Now

X2 Capacitor Interference Suppression Metallized Polypropylene Film Capacitor 1uF 275VAC 305VAC 310VAC

Item: TMCF18-105K275VP22.5B

Capacitance:1uF

Voltage: 275VAC

Tolerance: +/-10%

Dielectric: Metallized Polypropylene Film

Pitch=22.5mm

Size: 26*19*10mm

Package: Bulk

Dimensions

Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC

Item W±0.5 H±0.5 T±0.5 D±0.05 L±1 P±0.5
X2 105K275VAC 26 19 10 0.8 22 22.5

Part Number Naming Rule:

TMCF 18 _ 105 K 275V P22.5 B
Product Category Sub-Series   Capacitance Tolerance-10% Voltage Pitch Packing-bulk


Features

  • Class X2 voltage standard
  • Non-inductive, (UL940V-0) plastic case sealed with epoxy resin.

  • Used in across-the-line, interference supperession circuit

Outline Drawing

Non-inductive, wound with metallized polypropylene film as the

dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.

X2 Capacitor Interference Suppression Metallized Polypropylene Film Capacitor

Rated Voltage 275VAC,305VAC,310 VAC
Capacitance Range 0.001 to 4.7uF
Capacitance Tolerance ±10% (K)
Operating Temperature -40°C to 110°C
Testing Voltage 4.3UR DC /5s
Dissipation Factor 0.0010μF≤CR≤0.47μF ≤0.1% (1KHz,20℃)
0.47μF≤CR≤1.0μF ≤0.2% (1KHz,20℃)
1.0μF≤CR≤10μF≤0.3% (1KHz,20℃)
Insulation Resistance CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF, I.R≥5,000S (20℃,100V,1min)

Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC

Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC

Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.


Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!

Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC
