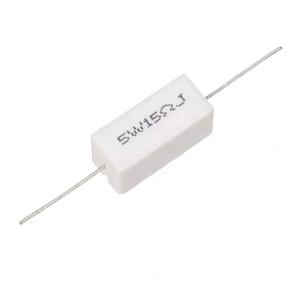

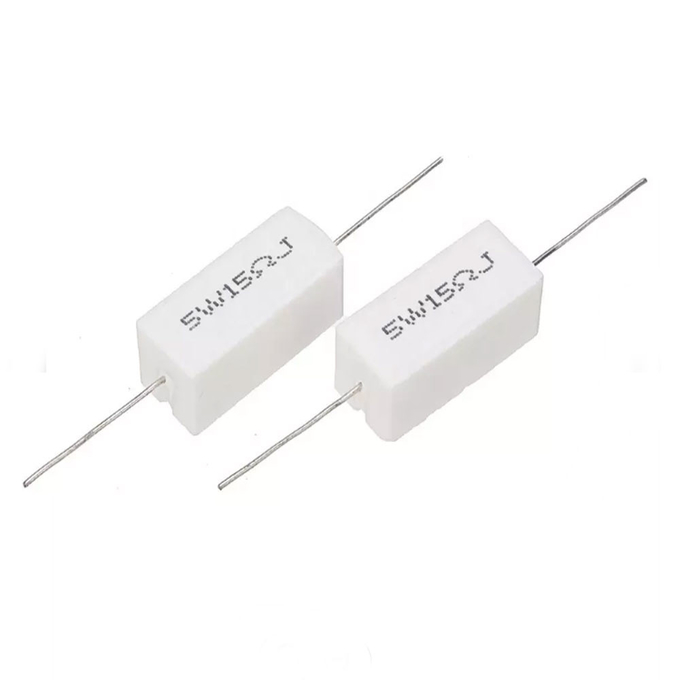

Wirewound Resistor 5W15ΩJ SQP Ceramic Cement Resistor 5W 15ohm 5%
Feature:
- Low noise.
- Excellent insulation being used in PCB.
- In stand overload capability.
- Long term stability.
- Excellent heat dissipation.
- Small linear temperature coefficient.
- Metal oxide film cutting core can offer high range resistance (1Ω~100KΩ)
- Operating temperature range Wire wound: - 40℃ ~ + 155℃
- Metal oxide film: - 55℃ ~ + 155℃
- Temperature around freezing lattice: 1W~10W 70℃ 15W above 25℃
Application:
Entertainmentsystem, Power supply,Meter/Instruments system
| Rating Power | Dimensions |
| L±1.0 | W±0.5 | H±0.5 | A±2.0 | B±2.0 | D±2.0 |
| 1W | 14.50 | 6.50 | 6.50 | 20.00 | 20 | 0.55 |
| 3W | 22.00 | 8.00 | 8.00 | 22.00 | 22 | 0.65 |
| 5W | 22.00 | 9.50 | 9.50 | 25.00 | 25 | 0.75 |
| 7W | 35.00 | 9.50 | 9.50 | 25.00 | 25 | 0.75 |
| 10W | 48.00 | 9.50 | 9.50 | 25.00 | 25 | 0.75 |
| 15W | 48.00 | 12.50 | 12.50 | 25.00 | 25 | 0.75 |
| 20W | 63.00 | 12.50 | 12.50 | 25.00 | 25 | 0.75 |
| 30W | 75.00 | 19.50 | 19.50 | 25.00 | 25 | 0.75 |
| 50W | 90.00 | 19.50 | 19.50 | 22.00 | 22 | 0.75 |
| 100W | 133.00 | 24.00 | 21.00 | 22.00 | 22 | 0.75 |
Construction:
| NO. | Components |
| A | Padding materials |
| B | Tinned copper lead wire |
| C | Ceramic shell |
| D | Fiberglass or ceramic core or resistors film |
| E | Resistance wire or ceramic core |
| F | Iron cap |
Electrical Characteristics:
| Rated Power At 70℃ | Max Working Voltage | Max Overload voltage | Insulation Voltage | Resistance Range | Operating Temperature | T.C.R |
| 1W | 150V | 250V | 1KV | 0.1Ω~500KΩ | -55℃~+275
℃ | T50:±50PPM/℃
T100:±100PPM/℃
T200:±200PPM/℃
T350:±350PPM/℃
T500:±500PPM/℃ |
| 3W | 250V | 350V | 1KV | 0.1Ω~500KΩ |
| 5W | 350V | 500V | 1KV | 0.1Ω~500KΩ |
| 7W | 350V | 500V | 1KV | 0.1Ω~500KΩ |
| 10W | 500V | 750V | 1.5KV | 0.1Ω~500KΩ |
| 15W | 500V | 750V | 1.5KV | 0.1Ω~500KΩ |
| 20W | 500V | 750V | 1.5KV | 0.1Ω~500KΩ |
| 30W | 750V | 1000V | 1.5KV | 0.1Ω~500KΩ |
| 50W | 750V | 1000V | 1.5KV | 0.1Ω~500KΩ |
| 100W | 750V | 1000V | 1.5KV | 0.1Ω~500KΩ |
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
