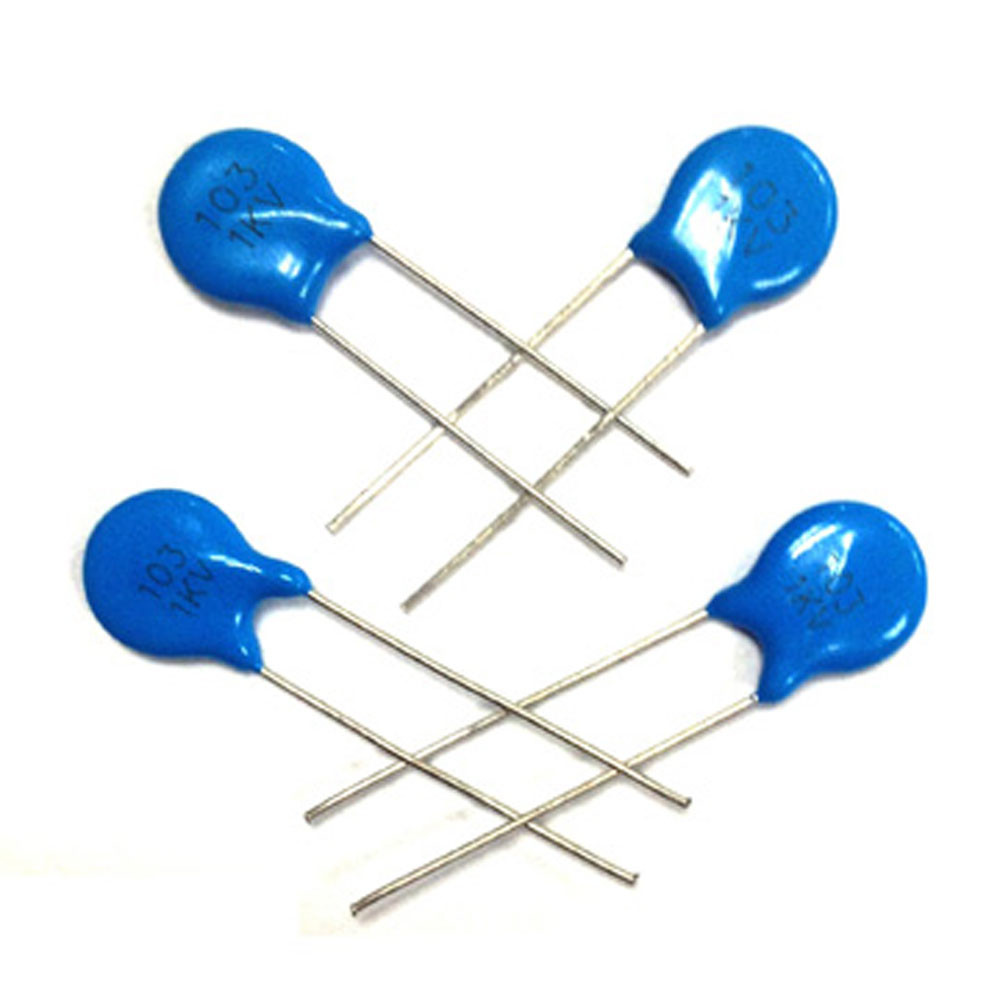

Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm
Features
High pressure resistance, low loss
Good frequency characteristics, with high stability
Special series structure is suitable for high voltage and long-term reliability
High current climbing rate and suitable for high current loop non-inductive structure
Insulation resistance, long use time
Specification
| TOPMAY Part No | TMCC02-103M1KVP5B |
| Rated Voltage | 1000VDC |
| Capacitance | 10nF |
| Tolerance | +-20% |
| Material Type | Y5V (Temperature. Characteristic: +22%,-82%) |
| Color | Blue Epoxy coating |
| Pitch | 5mm(±1mm) |
| Diameter | 10mm ±1mm |
| Operating Temperature Range | –25℃～+105℃ |
| Testing Using Condition | Temperature: 15~35℃ 1KHz Humidity: 45%~ 75% Atmospheric pressure: 86~106Kpa |
| Withstand voltage | 2000VDC voltage applied for 1 ~ 5 seconds without abnormality |
| Insulation resistance | 60 seconds at DC 500V, I.R.≥ 6000 MΩ |
| Dissipation Factor( DF) | ≤0.035 |
Applications
High voltage ceramic capacitors are used in high stability oscillating circuits as circuit capacitors and pad capacitors. And its main role is to remove high-frequency interference, so it is suitable for anion products, such as laser, X-ray machine, control equipment, igniter, transformer, power equipment, electrostatic spraying and other mechanical and electrical equipment need high voltage and high frequency.
Remarking
There are clear capacitance value code and voltage
